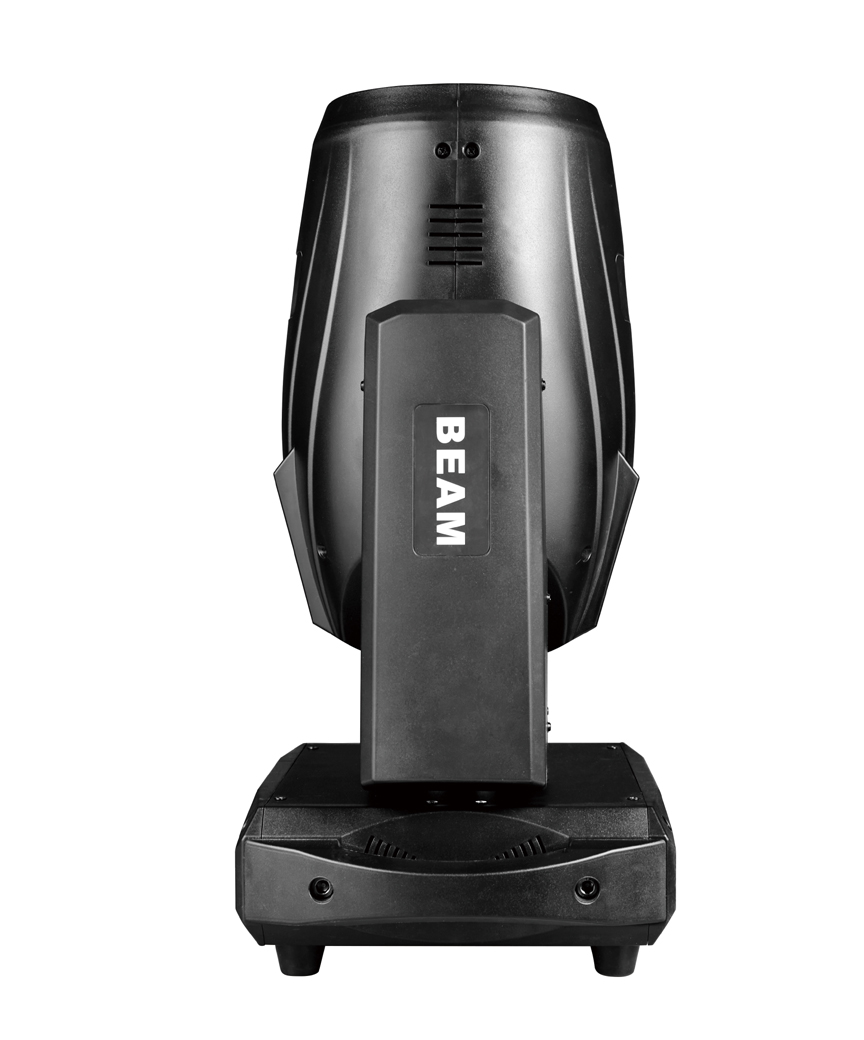

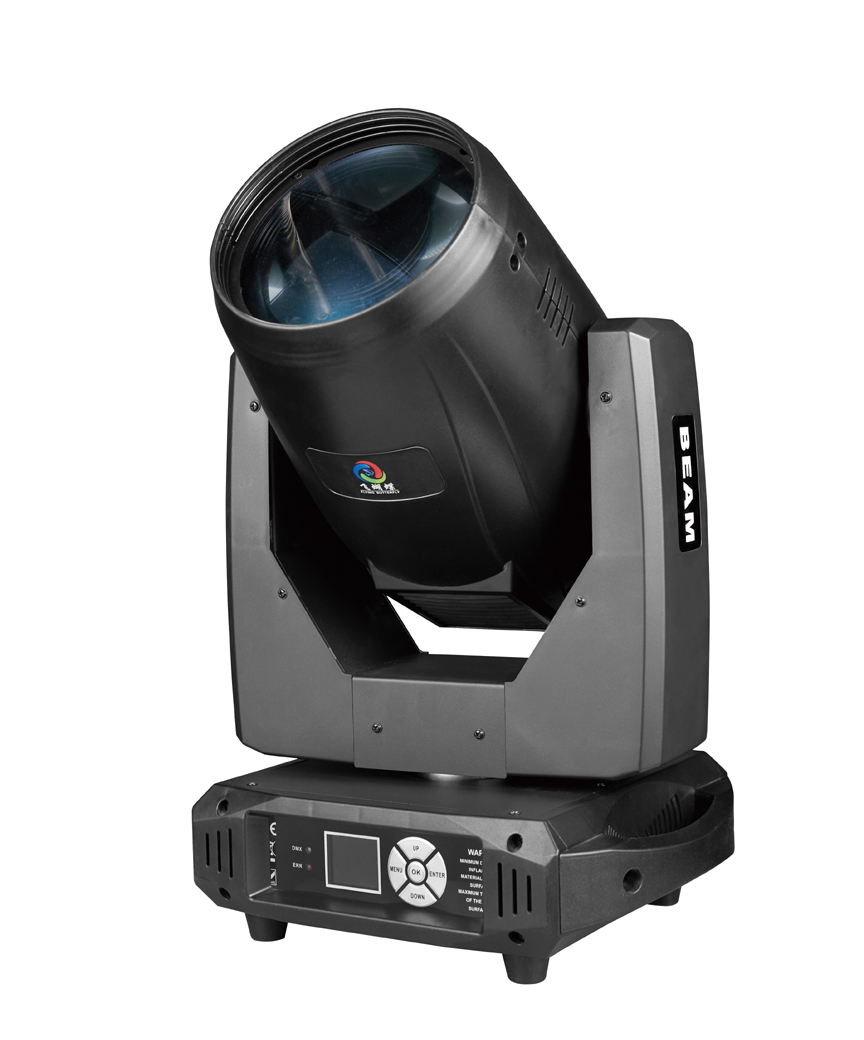

310W Moving Head Beam Light
Parameter
Size
Detail
Effect light
Projection
Video
Application
Voltage: AC100-240V 50/60Hz.
Power: 500W
Light bulb: phoenix bulb 310/295;
Ballast: electronic ballast;
Control mode: voice control, built-in program, master-slave computer, DMX512 signal control;
Number of DMX512 channels: 16 channels;
Color wheel: a color wheel, which consists of 13 color films+blanks;
Pattern plate: one pattern plate with 17 pattern effects;
Prism: a 16-prism and an 8-prism; Prisms can overlap, three prism effects;
Atomization/colorful: an atomizing mirror or a colorful mirror can be selected;
Optical angle: parallel beam angle 0 ~ 2.3, atomizing light angle 8;
Dimming: 0-100% mechanical dimming;
Focus: linear focus;
Strobe: dual-frequency flash structure, adjustable 0.5-14 times/second, supporting mechanical strobe and adjustable strobe effect, and supporting strobe macro function;
Horizontal scanning: 540 (16 bit precision scanning) electronic error correction;
Vertical scanning: 270 (16-bit precision scanning) electronic error correction;
Cooling system: built-in cooling mute fan forced air cooling, electronic temperature control overheating protection;
Fuselage material: high temperature resistant plastic+molded alloy material;
Connection mode: 3-core Calon DMX input and output, power input;
Working environment: indoor-20 ~ 40℃;
IP protection level: IP20
Net weight: 13.5Kg
Size: 324*238*479mm
